额定电压（Rated voltage）:1000VDC
额定电流(Rated Current):6.5A
环境温度(Ambient temperature):-40℃-+85℃
防护等级(Protection Degree):IP65
保护等级(Protection Class):Class Ⅱ
连接线尺寸(Specified wire size):4.0m㎡
标准(standard):DIN V VDE V 0126~5/05.08
*配置不同型号的二级管会改变接线盒的最大工作电流
*The working current of box will be changed
when fixed with different types of diode

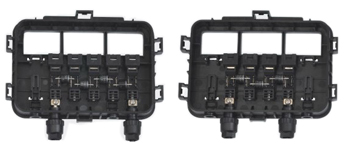

                  PV-PK6002-4                              PV-PK6002-3
